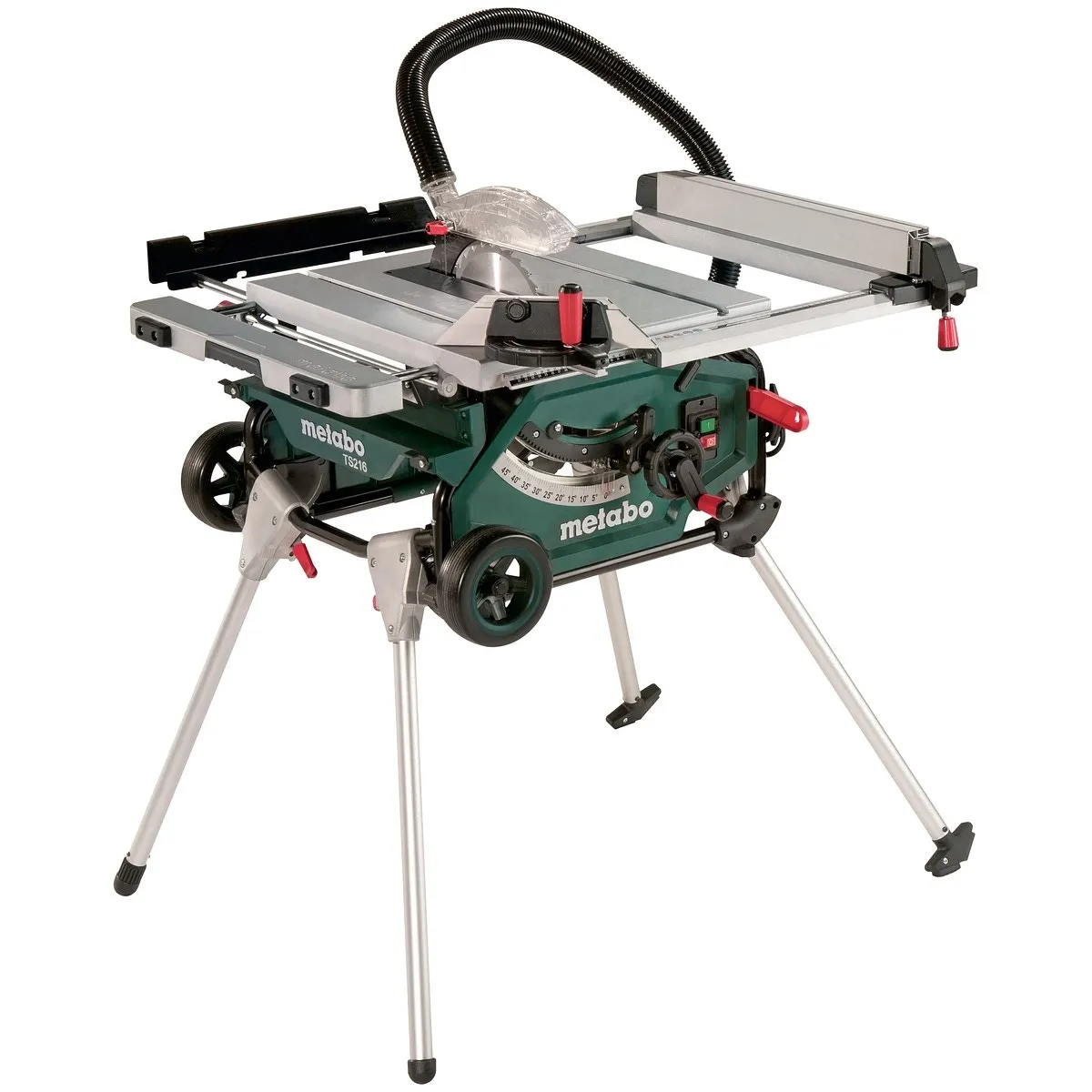

Description
Features:
- lightest table saw with trolley function, also suitable for one-handed transport
- integrated stand made from stable die-cast aluminium (patented): unfolded in a matter of seconds with secure stand
- very compact with folded stand for comfortable transport and space-saving storage
- second working height for working near ground level
- anti-twist tubular frame construction for highest demands on the building site and during installations
- cables and all add-on components for transport can be stored on the casing
- powerful motor with electronic overload protection
- motor brake for quick stop of the saw blade in 3 seconds
- restart protection: prevents unintentional start-up after power supply interruption
- soft start for long service life of motor and drive
- precise parallel guide/rip fence with double clamping and quick fastening
- precise saw blade inclination via gear guide
- automatic resetting to 0 – 45° after undercuts
- easy saw blade change with spindle lock
- splitting wedge can be countersunk without tools for transport
- precise, extendable table width extension for extra large working surfaces
- dual port dust extraction for low dust emission
Technical data:
- mains voltage 220 – 240 V
- rated input power 1500 W
- no-load speed 5000 rpm
- cutting speed 57 m/s
- saw blade 216 x 30 mm
- saw blade swivel range -1.5 – 46.5°
- maximum cutting height 90/45°63 / 43 mm
- maximum cutting width at rip fence 425 mm
- maximum material width at mitre fence 165 mm
- max. support surface 780 x 930 mm
- working height 850 / 355 mm
- cutting height 0 – 63 mm
- sound pressure level 89 dB(A)
- sound power level (lwA) 102 dB(A)
- cable length 3 m
- dimensions 670 x 730 x 355 mm
- weight 28.5 kg
Standard accessories:
- carbide saw blade with alternately bevel-ground tips (30 teeth), rip fence, mitre fence, table length extension, table width extension (left), table width extension (right), chip and dust extraction unit, push stick, stand, hard rubber tyres
