Description

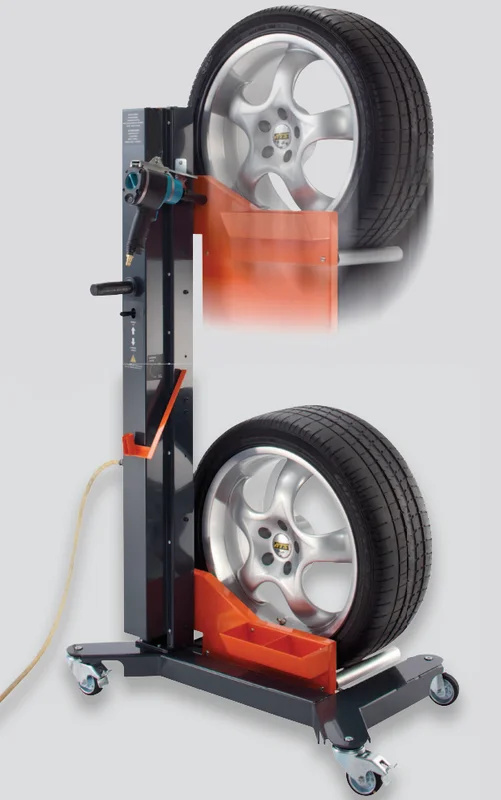

The EasyLift makes wheel changing considerably easier.
Wheels weighing up to 60 kg can be replaced rapidly and far less strenuously.
The EasyLift is the quickest device on the market thanks to its high raising and lowering speeds.
The wheel remains movable thanks to a mounting fitted with ball-bearinged rollers.
The lifting device works with compressed air, and an innovative, patented mechanism for fine adjustment of the working height enables precise wheel fitting.
The EasyLift remains mobile at all times thanks to its trolley.
A well thought-out storage system for bolts, hooks for the manual tyre inflator and a hanger for the torque wrench ensure tidiness at the workplace.
no power or battery necessary completely maintenance free one-man operation
Approved by Daimler AG
Recommended by BMW AG
Optional extension set:
A crossbeam with balancer enables fatigue-free work with the impact wrench on the wheel.
The holder ensures that the device does not get in the way when it is not being used.
Safety at work:
According to the occupational accident insurance, the ”change of wheels” is work with an increased risk level. High workloads and physical overstressing are probable results for the fitter.
For this reason, the EasyLift is an effective design measure in order to comply with the occupational accident insurance specifications or the ordinances of 90/269 EEC.
Tekniska specifikationer
Max belastning: 60 kg
Max arbetstryck: 8 bar
Däckstorlek min: 135/80R13
Däckstorlek max: 305/30R26
Höjd: 1500 mm
Bredd: 900 mm
Djup:520 mm
Max lyfthöjd: 1400 mm
Vikt: 50 kg
